Hydraulic Cylinder（Side-turning over Model）
Company Introduction
Linqing Dingtai Machinery Co., Ltd.
Company Overview
Established in 2002, Linqing Dingtai Machinery Co., Ltd. is a leading manufacturer of hydraulic products, headquartered in Linqing City, Shandong Province, China. In 2010, the company expanded to a state-of-the-art facility at the north end of Dongwaihuan Road, leveraging its strategic location for efficient logistics and distribution.
☑ Deep hole boring equipment.
☑ Cold drawing production lines.
☑ Testing equipment.
☑ CNC machining centers
☑ Cylindrical grinding machines
☑ Centerless grinding machines
☑ Welding production lines
Core Products
We specialize in:
Hydraulic cylinder assemblies
Engineering machinery cylinders
Mining hydraulic props
Facilities & Capacity
Factory Size: Over 100 acres
Investment: 120 million RMB
Equipment: 150+ advanced machines, including deep-hole boring, cold-drawing lines, precision testing devices, and CNC tools.
Annual Production: 36,000 sets
Quality Assurance
ISO 9001 Certification: Achieved in 2003.
ISO/TS 16949 Certification: Obtained in 2013, emphasizing automotive industry standards.
Partnerships
We collaborate with industry leaders such as SAIC, FAW, XCMG, and XGMA, solidifying our reputation as a reliable supplier.
Global Reach
Our products are exported to:
The Americas
Europe
Africa
Australia
The Middle East
Southeast Asia
We’ve earned global trust and established a strong international presence.
Core Philosophy
Survival: Through superior product quality.
Development: Via cutting-edge technology.
Profitability: Through advanced management.
Reputation: By delivering exceptional service.
Commitment to Innovation
We focus on continuous technological advancements to enhance market share and customer satisfaction, aiming to deliver maximum value.
Why Choose Us?
With advanced facilities, global reach, and a commitment to quality and innovation, Linqing Dingtai Machinery Co., Ltd. is your trusted partner in progress. Let’s build a stronger future together!
Basic Information:

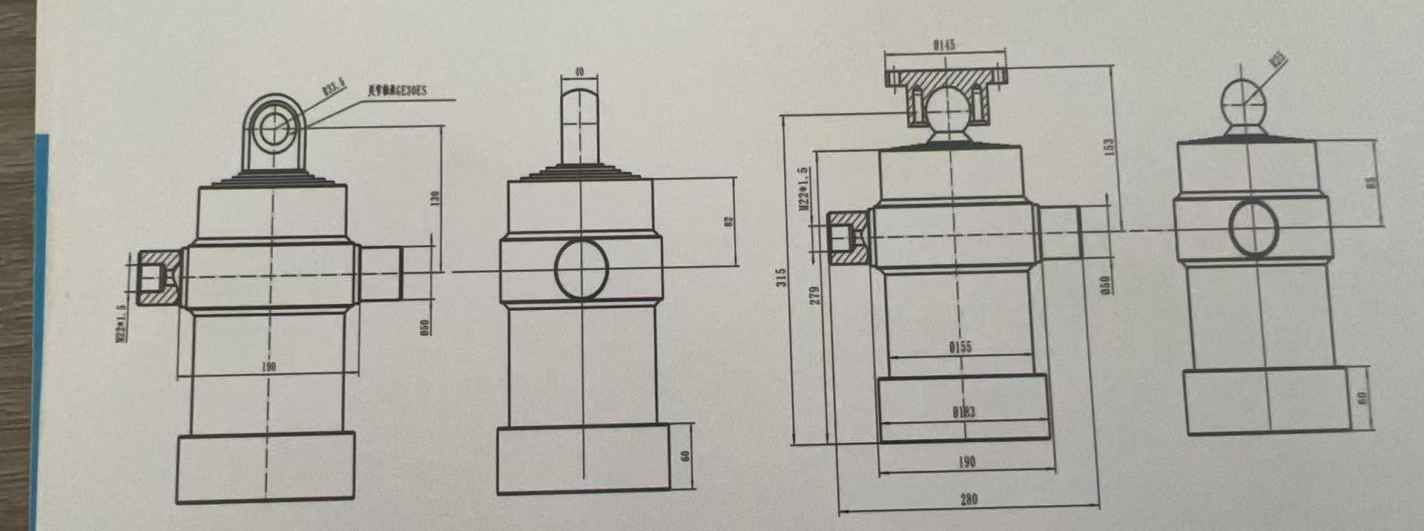

Hydraulic Cylinder（Side-turning over Model）
|
Model
|
第一节缸径First bore Dia（mm） |
行程 Stroke（mm） |
工作压力（working Pressure）Mpa |
油口尺寸Oil Port Size（mm） |
| 3TG-110*750ZE | 110 | 750 | 16 | M22*1.5 |
| 4TG--110*750ZE | 110 | 750 | 16 | M22*1.5 |
| 4TG--120*750ZE | 120 | 750 | 16 | M22*1.5 |
| 5TG--120*750ZE | 120 | 750 | 16 | M22*1.5 |
| 4TG--130*800ZE | 130 | 800 | 16 | M22*1.5 |
| 5TG--130*800ZE | 130 | 800 | 16 | M22*1.5 |
| 5TG--130*800ZQ | 130 | 800 | 16 | M22*1.5 |
| 4TG--150*800ZE | 150 | 800 | 16 | M22*1.5 |
| 5TG--150*800ZE | 150 | 800 | 16 | M22*1.5 |
Product Details
Dingtai hydraulic cylinders are designed for extreme conditions with excellent sealing and durable materials. Key features include:
☑ 1.High-Quality Material:
27SiMn steel pipe for high strength and load-bearing capacity.
☑ 2.Advanced Manufacturing
Patented technology for consistent quality.
☑ 3.Superior Sealing
Imported seals to minimize leakage.
☑ 4.Special Design
Lightweight, fast operation for high efficiency.
☑ 6.Wide Temperature Range
Operates from -40°C to 110°C.
☑ 6.Surface Treatment:
Chrome-plated for durability and extended life.
Our Services
With over 20 years of experience, we offer custom hydraulic cylinders based on your specifications:
1.Cylinder Dimensions
Stroke length, bore diameter, rod diameter.
2.Operating Pressure
Maximum and minimum pressure.
3.Temperature Range
Custom range if outside -40°C to 110°C.
4.Mounting Options
Flange, clevis, etc.
5.Seal Requirements
Specific seal materials or types.
6.Additional Features
Coatings, sensors, etc.
Contact Us
Need a custom solution? Provide your specs, and we’ll deliver.
FAQ
A1: We use patented technology and advanced production processes. Our products are certified under IATF16949:2016 and ISO9001 to ensure stable quality.
A2: Our oil cylinders are made with advanced equipment and strict quality control. The steel is tempered for durability, and we use high-quality raw materials from world-renowned suppliers. Plus, our prices are competitive!
A3: We were established in 2002 and have specialized in hydraulic cylinders for over 20 years.
A4: Approximately 20 working days.
A5: One year.
